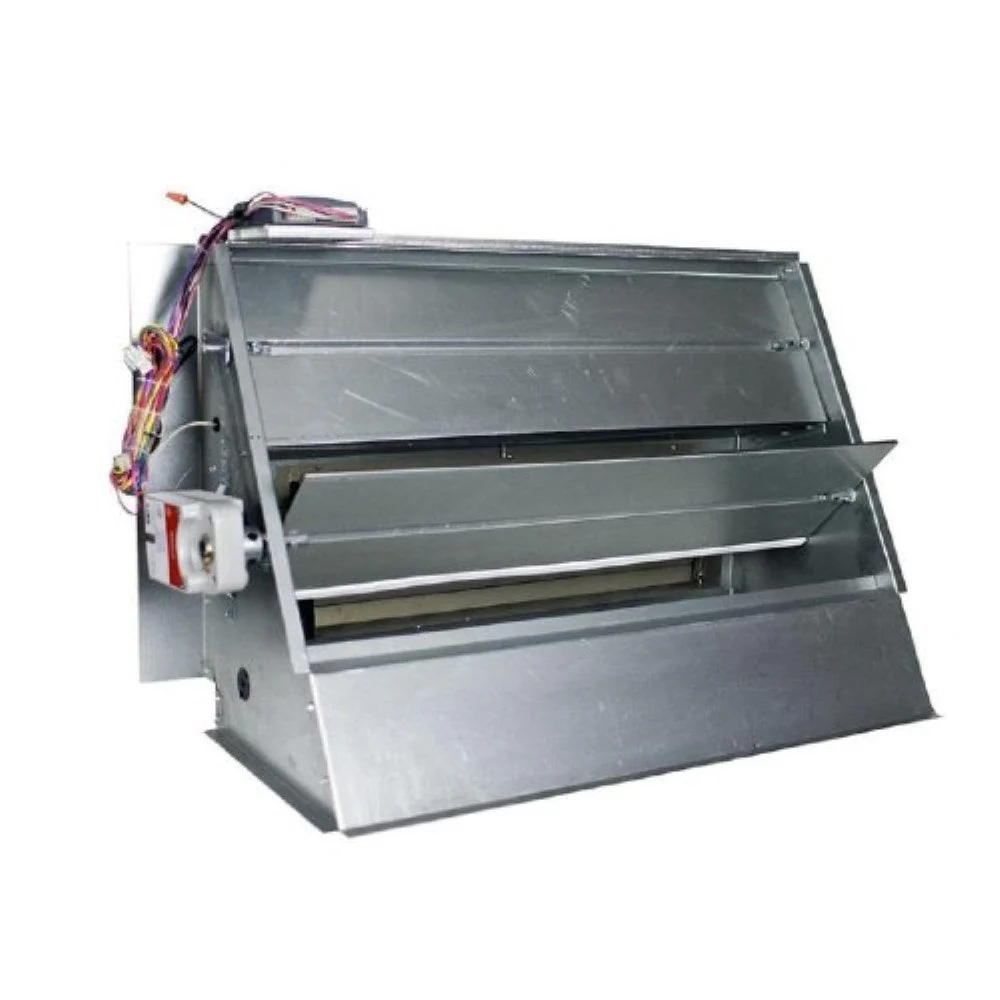

Enhance your Daikin rooftop unit's efficiency with the 0270L01137 Horizontal Prop-Type Power Exhaust. Designed for 7.5 to 12.5-ton packaged units, this accessory ensures optimal air management in horizontal applications. Specifications and Submittals

🔧 Key Features

Voltage Compatibility: Operates on 208/230V, suitable for both single-phase and three-phase systems.
Fan Specifications: Equipped with (1) or (2) 300mm EBM prop-type fans, mounted within a pre-painted steel housing that matches the rooftop unit's color.
Adjustable Damper Setpoint: Allows for precise control over damper opening from 0–100%, activating exhaust fans once the setpoint is exceeded.
Installation: Mounts directly to the field-supplied return ductwork, replacing the barometric relief hood.
Safety Compliance: Includes wiring harnesses for low-voltage connection to the economizer and high-voltage connection to the unit control box.
Weight: Approximately 77 lbs

📐 Dimensions

Height: 18.38 inches
Width: 36.5 inches
Depth: 17 inches

⚡ Electrical Specifications

Model Number	Voltage	Full Load Amps (FLA)	Minimum Circuit Amps (MCA)	Maximum Overcurrent Protection (MOP)
0270L01137	208/230V	3.3	4.1	5.4
0270L01137	208/230V	3.0	3.8	4.9

📦 What's Included

(1 or 2) 300mm EBM prop-type fan(s)
Pre-painted steel housing
Wiring harnesses for low and high voltage connections

⚠️ Installation Notes

Designed exclusively for horizontal applications; not suitable for vertical installations.
Ensure compatibility with your Daikin rooftop unit model before purchase.
Installation should be performed by qualified professionals in accordance with local electrical codes and safety standards.

For more detailed specifications and installation guidelines, refer to the IOD-7116B Installation Manual

Commercial HVAC

Daikin Horizontal Prop-Type Power Exhaust for 7.5-12.5 Ton, 208/230V model 0270L01137
